The LINDRIVE is an electronic Class 2, phase dimmable LED driver with a low profile hard plastic case making it the perfect choice for lower power tape lighting, kick/cove lighting, under cabinet lighting and multiple other residential and commercial lighting applications. The ETL Listed enclosure utilizes covered, side-feed terminal blocks for easy wiring and installation, eliminating the need for a separate junction box. The driver features auto reset, over current and short circuit protection as well as an efficiency over 90% resulting in low operating case temperature. The LINDRIVE SERIES is phase dimmable with leading-edge dimmers.

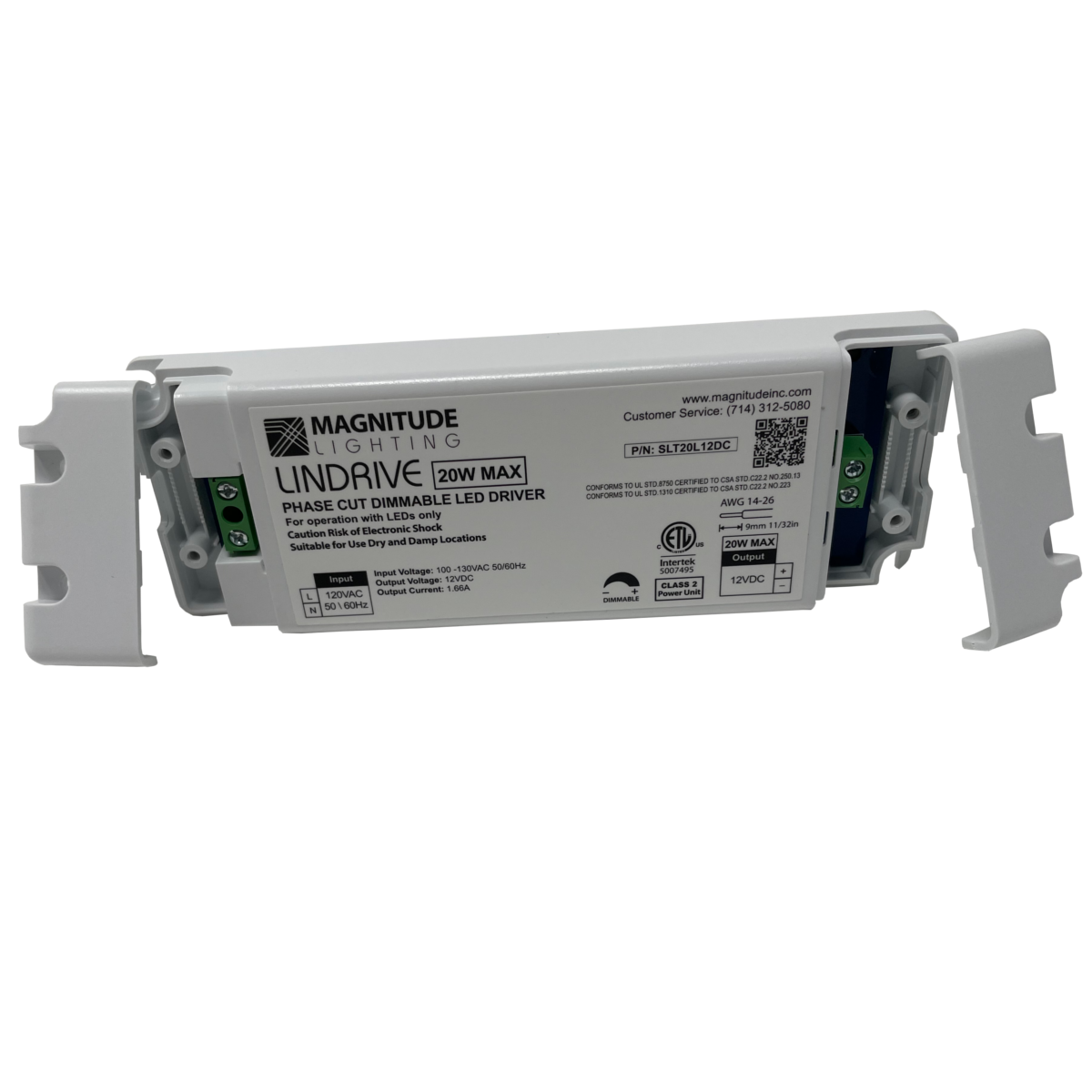

LINDRIVE Magnitude 12 Volt DC Dimmable Driver
Installation: Terminal Blocks with Side Feed
Driver Type: Class 2 Single Channel
Dimming: Phase Dimmable with Leading Edge Dimmer
Input Voltage: 100VAC – 130VAC, 50/60Hz
Output Voltage: 12VDC or 24VDC
Environmental: Dry and Damp
Listing: ETL Listed
KEY FEATURES
-
Side Feed Terminal Blocks for Easy Wiring and Installation Eliminating the Need for a Separate Junction Box.
-
Phase Dimmable with Leading Edge TRIAC Dimmers
-
Auto Reset, Over Current and Short Circuit Protection
-
Up to 90% Efficiency
-
ETL Listed
- 5-year Warranty
-
